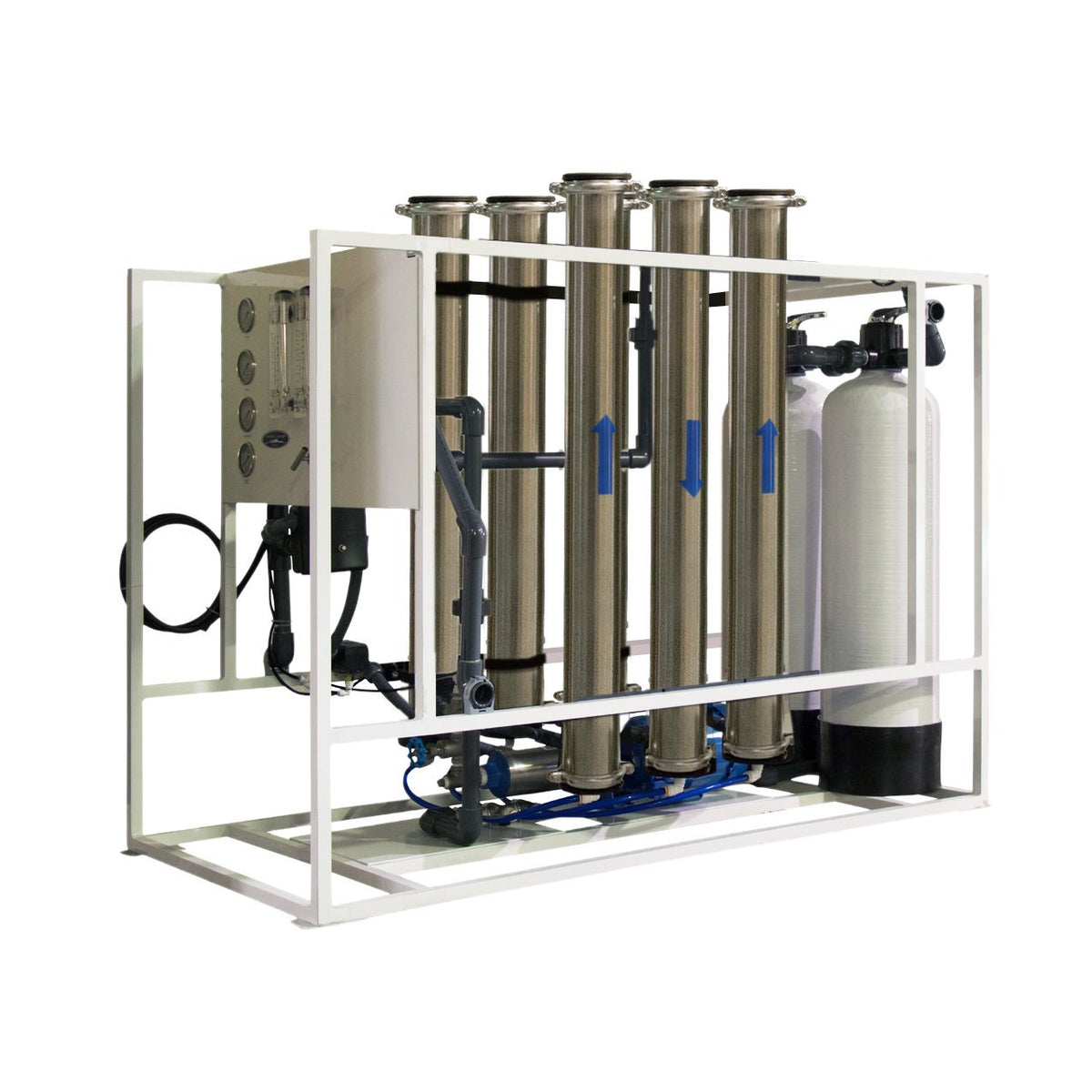

Crystal Quest High Flow Reverse Osmosis System, 10,000-50,000 GPD

This Crystal Quest high flow reverse osmosis system produces 10,000 to 50,000 GPD of purified water for commercial and industrial use. It is available as a 10,000, 15,000, 20,000, 30,000, 40,000 or 50,000 GPD reverse osmosis system, and every unit arrives assembled, plumbed and wired, tested at the factory and preserved.

Built for commercial and industrial RO

• Small footprint that saves floor space
• Every component within easy reach
• Lightweight and expandable
• Customizable, with everything included
• Arrives assembled, wired and plumbed
• Economical to operate
• Economical to maintain
• Straightforward servicing and maintenance
• Tested at the factory and shipped preserved
• CE compliant
• Manufactured in the USA

Standard features of the high flow RO system

• Thin film composite (TFC) membranes
• Membrane housings in stainless steel
• Centrifugal pump
• Pre-treatment vessels of 1.5 or 2.0 cubic feet, filled with 0.5 micron zeolite for turbidity and sediment and with coconut shell granular activated carbon
• Shut-off switch for low and high pressure
• Automatic feed shut-off
• Pressure gauges for feed and system pressure
• Flow control
• Cleaning ports
• Flowmeters for permeate and concentrate
• TDS displays for both feed and permeate water
• Aluminum frame with a heavy-duty coating
• C-150 microprocessor controller (standard without ethernet; ethernet is an optional upgrade)

What the controller handles automatically

• Opening and closing of the motorized feed valve
• A delayed start of the high-pressure pump
• Shut-down once the storage tank is full
• Shut-down on a pressure fault, high or low
• Lock-out when pre-treatment is running
• A feed water flush at every shut-down
• An alarm and shut-down on high product TDS

C-150 and C-200 microprocessor controllers

The Crystal Quest C-150 controller comes standard on the high flow commercial systems, and ethernet integration is available as an upgrade. Its features and options give OEMs the room to fit a wide range of specifications.

It has 5 relay outputs, 4 dry contact inputs and 2 inputs for TDS/conductivity. A 2 x 20 character LED display shows water quality, run hours, water temperature and the system's operating status.

With its more advanced feature set, the versatile Crystal Quest C-200 controller suits big commercial and industrial RO installations. It offers 6 switch inputs, 5 analog inputs, 6 relay outputs and 2 TDS/conductivity inputs, so it can be configured to many specifications.

A 4 x 20 character LCD display reports sensor readings, alarms, temperature, run hours and the system's operating status.

Pressure vessels in stainless steel

The stainless steel pressure vessels give the system a cleaner look and let you get the full performance out of the membranes. They are regarded as safer and more dependable than PVC vessels.

They are made for continuous, long-term service built to hold RO, ultrafiltration and nanofiltration elements in typical commercial water treatment, rated up to 300 PSI.

Upgrade options

The standard build is already well equipped. For specific water treatment jobs, Crystal Quest offers a list of options; the most requested ones are below.
